• Hospital-use RBP 7000

Product Description

Name:

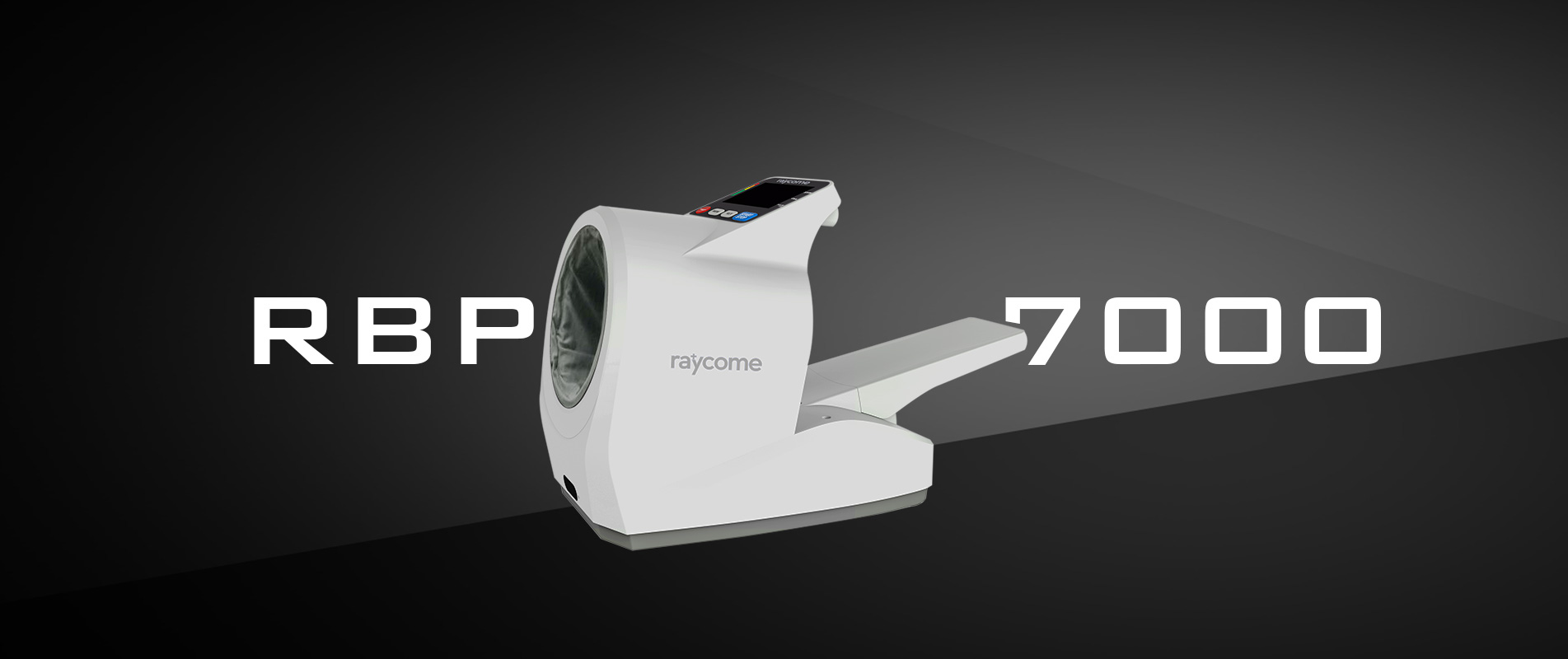

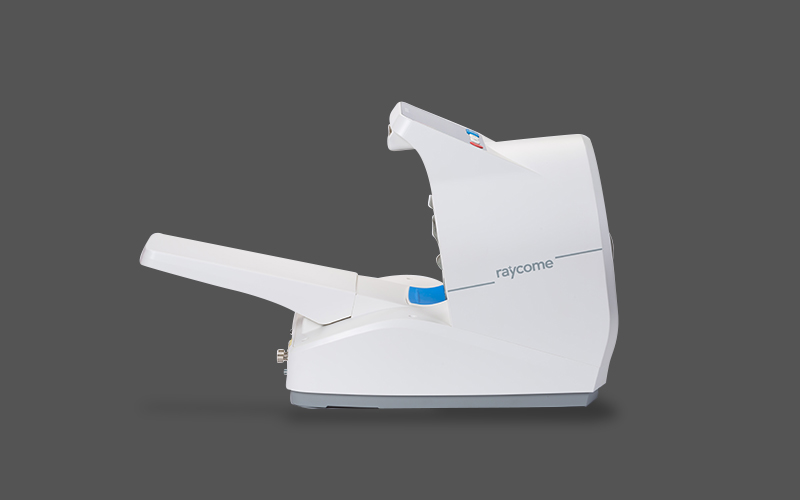

Desk-top Automatic Blood Pressure Monitor (PulseWave Patent Technology)

Model:

RBP-7000 Professional Blood Pressure Device for Hospital-use

Global innovative PulseWave technology. (not Oscillometric method)
Using innovative patent dual-balloons/sensors technology (instead of other single balloon/sensor ordinary digital blood pressure devices) and continuous measurement of multi-point pressure between pulses to achieve the most accurate measurement during the record of the accurate real state of blood flow. Over 40 countries invention patent applied.

Revolutionary
The 4th generation NIBP global innovative measurement method makes it possible to establish a new  ‘Golden Standard’ when mercury devices will be forbidden to use by The European Environment Union on the Year 2020 because of the ‘Mercury Pollution’.

Reliable

±2mmHg high accuracy, automatically calculates test results via Mathematical and physical methods. Avoid the measurement error caused by human intervention

Human voice reminder

During the whole measurement process to help users follow the correct instructions and get accurate results.

Memory storage up to 100 sets

the ‘MEM’ button helps users search for measurement results.

Antibacterial design
Removable cuff cloth design realized anti-bacterial/ comfortable/ healthy measurement upon cleaning/replacing.

Support various arm circumference between 17~42cm

Both hands can be measured independently.

Support data communication with PC/ HIS (Hospital Information System) via USB/ RS-232 port.

Intelligent Awakening
If no one uses the BPM, it will be in a dormant state; If someone is close to or in front of the sleeve, the BPM will wake up automatically

Optional Bluetooth Cloud service
Support APP called ‘BP Secretary’ to set multi-user measurement and transfer measurement results to Cloud.

Featured products

NameAutomatic Pulsewave Blood Pressure Monitor
Model No.RBP-7000
Measurement Range0 ~270mmHg (0 ~36kPa)
Pulse rate40 ~180/min
Accuracy of BP ± 2mmHg (±0.267kPa)
Accuracy of Pulse Rate ± 2%
Storage Capacity 100 sets
Power AdaptorInput:AC 100-240V,50-60Hz
Output: DC12V,3.5A
Operating Temperature41℉ ~ 104 ℉ (5℃  ~ 40℃)
Relative Humidity15% ~ 80%
Air Pressure80kPa~106kPa
Storage Temperature -7.6℉ ~ 131℉ (-20 ℃ ~ 55 ℃) /
Relative Humidity ≤93%
Air Pressure50kPa ~106kPa
Gross Weight7.45kg
Packing Dimension500mm(L)*355mm(W)*455mm(H)
19.68’’(L)*13.98’’(W)*17.91’’(H)
Shock ProtectionClass II, Type B
Arim Circumstance17~42cm
Communication PortsUSB*1 , RS-232*2, RJ-45*1
Test PortsUpper Bladder Test Port *1 , Lower Bladder Test Port*1
PrinterNo
Elbow ButtonYes, to adjust arm position
Horizontal 10° AdjustmentNo
Intelligent AwakeningYes
